オファリング
提供内容

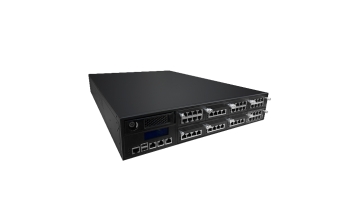

CASwell CAR-5060 ラックマウント・アプライアンスは、2 個の第 3 世代インテル® Xeon® スケーラブル・プロセッサー・ファミリーと構成の自由度の高いネットワーク・アーキテクチャーをベースとしており、最大 64 個の高速イーサネット・ポートに対応します。製造元の独自設計によるネットワーク構成を採用し、最大 8 個の PCI Express が接続された独自仕様の NIN モジュールは、それぞれが最大 8 個の高速イーサネット・ポートを搭載しているため、全体では最大 64 個のネットワーク接続を実現します。3.5 インチ x 1 または 2.5 インチ x 2 のハードドライブまたは SSD に対応したストレージ・モジュールも利用可能です。各ネットワーク・モジュールまたはストレージ・モジュールは、第 3 世代インテル® Xeon® スケーラブル・プロセッサー・ファミリーで導入された PCIe 4.0 x8 インターフェースによってプロセッサーに接続され、極めて広い帯域幅を提供します。ネットワークとストレージのモジュールのほかにも、PCI Express 4.0 x 16 拡張スロットが一つあり、妥協のない帯域幅と限りなく低いレイテンシーでマシンラーニングやディープラーニングなど最近登場したワークロードに対応します。特に、通信サービス・プロバイダー、クラウド・サービス・プロバイダー、大量の内部ネットワーク・ワークロードを抱えたエンタープライズでは、CAR-5060 により多大なメリットが受けられます。ネットワークおよびセキュリティー・アプライアンス企業であれば、アップグレードされた次世代統合脅威管理デバイスとして CAR-5060 を使用できます。
提供内容
Cloud Storage Servers (White Box)2x Intel Xeon Scalable Processors (Skylake-SP)24 x DDR4 ECC 2666MHz RDIMM2 x RJ45 GbE Ports, 2 x SFP+ 10GbE PortsM.2 SSDs & Rear 2.5” SSDs Slot for Boot DriveSupport Up to 5 Expansion CardsTPM Enabled DesignCASwell has introduced the new R-5211 high-end cloud storage servers to provide high processing performance, fast data access and flexible storage configurations by supporting a variety of drives at different form factors.This devices is based on two Intel Xeon Scalable Processors (Skylake) using the C622 platform controller hub (Lewisburg) and offering 24 DIMM slots for up to 768 GByte DDR4-2666 ECC main memory. These cloud storage servers are equipped with two Gigabit-Ethernet RJ-45 ports and two 10-Gigabit-Ethernet SFP+ ports. More network connections like dual 25-Gigabit-Ethernet can be added by using two PCI Express slots and five NIC expansion slots. There are two M.2 slots for implementing the operating system and server applications on a boot drive.Six PWM-controlled fans are making sure the system runs cool while two redundant power supplies provide security in case of failure. PMBus 1.2 is supported for digital management of the PSUs and the "Intelligent Platform Management Interface" (IPMI 2.0) is used for system monitoring and administration.The CASwell R-5211 is a 2U rackmount device that can be equipped with a variety of CPUs from the energy-efficient Intel Xeon Silver 4116 with 12 cores up to the highest-end Intel Xeon Platinum 8180 with 28 cores for ultimate performance. The R-5211 is available in two versions: The first one can be equipped with up to twelve conventional 3.5-inch hard drives with SATA or SAS interface while the second SKU can be used with up to 24 2.5-inch drives.The CASwell R-5211 are available in many different configurations so they can be equipped according to almost every customer need and storage or networking requirement.
提供内容
The CASwell CAR-3080 rackmount appliance, a verified Intel® Select Solution for uCPE, was developed for multi-access edge computing with its multiple network connections while also offering high-speed Ethernet —a common requirement nowadays and even more in the future. As an Intel® Select Solution for uCPE, the CASwell CAR-3080 brings the powerful performance of Intel® Xeon® D processors to the network edge as part of a workload-optimized hardware and software stack that offers verified performance. The platform includes PCI Express 3.0 (PCIe 3.0) for easy upgrading and Intel® QuickAssist Technology (Intel® QAT) to accelerate encrypted data traffic, reduce overall data size and lower storage demands. All of this in a compact 1U device that easily fits into any rackmount cabinet.
提供内容
CASwell CAR-5058 ラックマウント・アプライアンス、2 つのインテル® Xeon® ハイエンド・プロセッサー・ファミリーと高度な構成が可能なネットワーク・アーキテクチャーを搭載しており、最大 68 個の高速イーサネットポートと最大 4 台のハードドライブまたは SSD を使用することができます。
提供内容
CASwell CAF-0101 は、コンパクトなデスクトップ形式のファンレス・ネットワーク・アプライアンスです。新しい Intel Atom® プロセッサーと 4 つのギガビット・イーサネット・ポートおよび対応する Wi-Fi 拡張オプションにより、小型フォームファクターで優れたエネルギー効率を提供します。CAF-0101 は、中小企業 (SMB) または小規模なホームオフィス (SOHO) など、ネットワークとデータをサイバー攻撃から保護するための専用ファイアウォールとして、ルーティングおよびその他のネットワーキング目的で使用する場合に最適です。CAF-0101 は、2 コアまたは 4 コアの最新の Intel Atom® x6000 プロセッサー・ファミリーを搭載しています。最新の Intel Atom® シリーズのプロセッサーは、広く使用されている前世代の Intel Atom® x5 および x7-3900 シリーズと比較して、シングルスレッドでパフォーマンスが 70%、マルチスレッドのワークロードで速度が 50% 向上しています。また本番ノードは 10nm に改善され、Intel Atom® シリーズのプロセッサーのすでに優れているエネルギー効率がさらに最適化されました。CAF-0101 は、IBECC により、最大 16GB の DDR4 SO-DIMM メインメモリーを装備でき、追加の大容量ストレージ向けに高速の eMMC ストレージおよび 1 つの SATA ポートまたは SATA DOM を使用します。またシステムは、mPCIe モジュールを介した Wi-Fi 接続向けにオプションでサポートを提供しています。CAF-0101 は、有線ネットワーキング向けに、4 つのギガビット・イーサネット RJ45 ポートと 1 つの RJ45 システム・コンソール・ポートを提供します。トラステッド・プラットフォーム・モジュールは、オンボード TPM ヘッダーでサポートされています。CAF-0101 の新しいプロセッサーは、AI 向け事前最適化ライブラリー、マシンラーニング (ML)、およびコンピューター・ビジョン・アクセラレーションにより、インテル® OpenVINO™ ツールキットに対応しています。また、新たにインテル® Edge Software Hub がサポートされ、産業、小売、ビジョン向けに最適化されたすぐ導入可能なソフトウェア・パッケージを入手でき、さらにカスタマイズが可能です。CASwell CAF-0101 は、SMB と SOHO 向けに、バランスの取れたパフォーマンスとアップグレード・オプションによる費用効果の高いソリューションで、帯域幅管理、または医療および歯科画像処理システム向けネットワーク・トラフィックを監視します。このアプライアンスは、お客様のご要望に応じて構成できます。
提供内容
CASwell CAF-0100 は、デスクトップ型のファンレス・マルチネットワーク・アプライアンスです。新しい Intel Atom® プロセッサーと最大 6 つの高速イーサネットポート、さらに Wi-Fi と 5G または 4G/LTE によるモバイル・ネットワークのサポートにより、優れたエネルギー効率と高いパフォーマンスをコンパクトなフォームファクターで提供します。CAF-0100 は、中小企業 (SMB) または中小規模オフィス (SOHO) でのルーティングとその他のネットワーク用途に適しており、たとえば、不正な侵入者からネットワークやデータを保護するための専用ファイアウォールとして使用できます。CAF-0100 は、最新の Intel Atom® x6000 プロセッサーを搭載した 4 コアモデルですが、より軽量な用途向けに 2 コアモデルも用意しています。インテル® によると、このシリーズの Intel Atom® プロセッサーは、ファンレス・ネットワーク・アプライアンス CAW-0111 内と同様に、前世代で広く使われている Intel Atom® x5- および x7-3900 シリーズと比べて、シングルスレッドで 70%、マルチスレッドで 50% の速度向上を実現しました。また、本番ノードも 10 ナノメートルに改善されたため、Intel Atom® シリーズの優れたエネルギー効率がさらに向上しています。また、CAF-0100 は、IBECC 搭載の最大 16GB の DDR4 SO-DIMM メインメモリーを使用し、高速 eMMC ストレージを採用し、HDMI、Wi-Fi、4G LTE または 5G モバイル通信にオプションで対応しています。セルラー・ネットワークへのアクセスは、特定のドーターボードを介して M.2 モジュールで、WiFi は miniPCI Express モジュールで提供できます。CAF-0100 は WiFi 使用は 5 つのギガビット・イーサネット RJ45 ポートを、WiFiを使用しない場合は 6 つのイーサネット・ポートを提供します。CAF-0100 はさらに、オプションで追加可能な Ethernet Bypass Gen.4.4 をサポートしています。トラステッド・プラットフォーム・モジュールに対応し、必要な TPM ヘッダーをオンボードで搭載しています。CAF-0100 は、新しいプロセッサーとともに、人工知能 (AI)、機械学習 (ML)、コンピューター・ビジョン・アクセラレーション向けに最適化されたライブラリを持つインテル® OpenVINO™ ツールキットをサポートしています。また、新たにインテル® Edge Software Hub がサポートされ、産業、リテール、ビジョン向けに最適化されたすぐ導入可能なソフトウェア・パッケージを入手でき、さらにカスタマイズが可能です。CASwell CAF-0100 は、SMB と SOHO のネットワーク・トラフィックの監視、帯域幅管理、医療および歯科用画像システムなどに最適なソリューションです。このアプライアンスは、お客様のご要望に応じて構成できます。
提供内容
10GbE SFP+ バイパス・ネットワーク・アダプター: インテル® Fortville XL710-BM2 LAN コントローラーを搭載し、2x SFP+ 10GbE ポート、独自の PCIe Gen3 x8 でバイパス (フェイルオーバー) 機能を提供
提供内容
デュアルポート 40GbE QSFP+ ネットワーク・アダプター: Intel Fortville XL710-AM2 LAN コントローラーを搭載し、独自の PCIe Gen3 x8 で QSFP+ 40 ギガビット・イーサネット・ポートを 2 基提供この 85mm × 152mm × 16mm というコンパクトなサイズのネットワーク・インターフェイス・モジュールは、CASwell のラックマウント・ネットワーク・サーバー向けに最適です。
提供内容
インテル® E8100-CAM2 LAN コントローラーと 2 つの QSFP+ 100-GbE ポートを搭載したデュアルポート 100-GbE QSFP+ プロプライエタリー・アダプター
提供内容
CAD-0280 デスクトップ・アプライアンスは、2~10 コアのプロセッサーを搭載したインテル® Xeon® D-1700 (Ice Lake-D) シリーズ SoC を使用しており、ネットワークのセキュリティーや管理、 loT ゲートウェイ、UTM、ファイアウォール向けの小型で効率的なソリューションの優れたベースとなります。CAD-0280 はバイパス機能を備えたイーサネット・ポートを最大 10 個備え、最大速度を 25Gbit/s に設定できます。mPCIe または M.2 拡張カードにより、WiFi、4G/LTE、5G による無線接続までネットワークを拡張できます。
提供内容
世界をリードする究極のパフォーマンス・ネットワーク・コミュニケーション・アプライアンス・プロバイダーは、第 8 世代 (開発コード Coffee Lake) マイクロアーキテクチャーと C246 チップセットを採用した最新の第 8 世代インテル® Core™ およびインテル® Xeon® ワークステーション・プロセッサー向けの CAR-4040 の仕様を発表しました。この CPU は 14nm プロセス設計を採用し、最大 6 コア / 12 スレッドをサポートしています。インテルの概算の予測では、第 8 世代 (開発コード Coffee Lake) CPU は、第 7 世代 (開発コードKaby Lake) CPU と比較して最大 45% 高速化されています。エンタープライズ・クラスの耐障害性を実現するために、CAR-4040 は 1U ラックマウント・システムで、極めて高いパフォーマンス、アプリケーションに最適化された、機能性、拡張性を実現するように設計されています。CAR-4040 は、34 の PCIe Express レーンを備え、4 つのネットワーク・モジュラーカード (NIP) をサポートし、1 つの PCIE x8 スロットはモジュラーで設定可能なネットワーキング I/O とアクセラレーション用に確保されています。CAR-4040 は、ネットワーク機能仮想化 (NFV) およびソフトウェア・デファインド・ネットワーク (SDN) アプリケーション、さらにはファイアウォール、VPN、IDS / IPS、迷惑メール対策、ウイルス対策、UTM、WAN などの従来のネットワーク・セキュリティー・アプリケーション、そして仮想データセンター、ADC、QoS、サーバー・ロードバランサー、無線コントローラー、イーサネット TCP / IP 経由の産業用オートメーション制御などのネットワーク管理アプリケーションを対象としています。第 8 世代 (開発コード Coffee Lake-S) 搭載製品のサンプルは、2018年6月にお客様のテスト用に提供開始する予定です。
提供内容
The CASwell CAR-2090 in low-profile 1U form factor is an upgraded and enhanced successor of the widely adopted CAR-2080. This server system offers multiple configuration options for professional security applications like firewalls and unified threat management (UTM) to effectively protect company networks. The CAR-2090 is based on Intel®'s 10th core generation ("Comet Lake") and can be equipped with Xeon W-1200E or Core i3- to i9-10000 and even Pentium or Celeron processor models that provide up to 10 cores and 20 parallel threads while staying at or under 95 watts thermal design power. This server system offers two DIMM slots for up to 64GB DDR4-2933 main memory and ECC depending on CPU model and PCH. This ensures the solution can handle demanding and advanced network tasks while staying cool and energy-efficient. Depending on PCH choice by customer the CASwell CAR-2090 offers six or eight Gbit-Ethernet ports supporting two pairs of Network Bypass 4.0. This can be expanded to 20 GbE ports with an optional CASwell NIP or NIN module with up to eight network ports and one internal daughter board for four more Ethernet ports (RJ45 or SFP) when the Intel® W480E PCH is used. Both CASwell network module and daughter board are connected to the main system by high-speed PCI Express 3.0. By standard, the CAR-2090 features four internal SATA 3.0 ports for storage (one for SATADOM). When the W480E PCH is used, there is one M.2 slot available onboard for a fast PCIe NVMe or SATA SSD. The LCD module in the front of the device holds one 2.5-inch SATA disk tray for storage but that EZIO module can be changed to an ISAM module for two front swappable 2.5" SATA drives.Besides traditional network security applications such as firewall, VPN, IDS/IPS, anti-spam, anti-virus, UTM and WAN, the CASwell CAR-2090 can also be used for software defined networking (SDN) and network function virtualization (NFV) applications as well as network management applications such as virtualized data center, ADC, QoS, server load balancer, wireless controller, and industrial automation control via Ethernet TCP/IP.
提供内容
CAR-2070, the latest network communication security platform from CASwell Inc., is a 1U rackmount system featuring 14nm microarchitecture, the 6th generation Intel® Core™ processor and Intel® H110 chipset. The CAR-2070 features two DDR4 DIMMs, up to 2133MHz memory; flexible user interface; on board six ports with 2 segments bypass function and up to 14 RJ45/SFP/10GbE RJ45/SFP+/QSFP+ ports by one swappable CASwell NIC module. Other features include maximum of two 2.5˝ SATA HDDs and one 3.5’’ SATA HDD, RJ45 /Micro USB console and two USB ports, 150W single ATX power supply. The CASwell CAR-2070 is implemented with front I/O flexibility and a multi-function design concept. Customers can select various combinations of 2.5˝ HDD/SSD, copper/fiber media, GbE/10GbE/40GbE and third-party hardware acceleration smart module and one character LCD display module with function buttons. In addition, the system equips a device information card which user can read the MAC or SN information without turn the system over, and front panel appearance can stay tidy. Inside the system, CASwell has reduced physical cable/wire connections to maximize airflow and electronic signal quality.
提供内容
CAF-0250 is designed for rising demand of network usage can provide great network performance with compact design and adopting Intel® platform. The key of design is as following: Integration of system performance with on board Memory and eMMC storage Overall Heat dissipation Fanless system design Easy assembly and energy conservation Simple architecture Support with high performance SDN switch
提供内容
Caswell's Industrial CAW series products are designed for wide deployment in application-specific environments, offering stability, longevity, high availability and a perfect balance between size, cost, performance and power consumption. Specifications: Intel Atom E3900 series (Formerly Apollo lake-I). PCIe switch for multi-ports. Mini-PCIe for a wireless solution. Bypass function with GbE RJ45. Dual power inputs and failure detection design. Available in the harsh environment -40-85c. DIN rail form factor Certification for smart grid (IEC-61850-3) & oil & gas (IECEx/ATEX/NRTL) application.
提供内容
The CASwell CAR-3080 rackmount appliance can be equipped with ultra-fast networking connections of up to 40 Gbit/s and also offers nearly infinite Ethernet configurations with a maximum of 40 ports in this flat, low-rise 1U design. This setup is made possible by the unique design and combination of CASwell's Network Interface Plug-ins (NIP) and Network Interface Cards (NIC), all connected via high-speed PCI Express 3.0.The CASwell CAR-3080 by default comes with six Gigabit-Ethernet ports and two SFP+ ports for 10-Gbit-Ethernet but can be enhanced almost endlessly with a standard NIC connected by PCI Express x16 and the three patented NIPs that use PCIe x4/x8 for data transfer. Each NIP and the NIC can offer up to eight Gigabit-Ethernet ports of their own but are also available in different configurations with 10-GbE, 25-GbE or even 40-GbE ports. Optional bypass switches ensure that the network keeps running even during maintenance or in case of power outages. PoE options are also available when "Power over Ethernet" is needed besides delivering data – seemingly infinite possibilities of networking configurations!The CASwell CAR-3080 is based on the Intel Xeon D-2100 processing platform (Skylake) with four to 16 CPU cores and can be combined with up to 128 GByte DDR4-2400 main memory. The CPU comes with integrated Intel Quick Assist Technology (QAT) to accelerate encrypted data traffic in a secure network and to reduce overall data size and lower storage demands by faster real-time compression while at the same time relieving the CPU of some of the processing workloads. An optional "Trusted Platform Module" (TPM) for encryption, authentification and digital rights management is also available for the CAR-3080 and the whole system can be monitored by the "Intelligent Platform Management Interface" (IPMI 2.0).The CASwell CAR-3080 will be available soon and can be equipped according to almost every customer need and networking requirement. Please contact your local CASwell representative for any questions!
提供内容
CAF-0260 is a CA standard desktop fanless product based on Intel Atom® C3538/C3558 processor (Formerly Denverton platform) which is designed for SD-WAN and vCPE application with 4G/LTE and WiFi Function. Following key features are:SIM/Wi-Fi Function SupportIntel Atom® C3000 Series Processor (Formerly Denverton)DDR4 Memory10GbE SFP+ dual Ethernet Ports1x mPCIe Socket(s) for LTE Module1x M.2 Socket(s) for WiFi ModuleHigh Reliability and Low Noise Fanless Design
提供内容
MEC-6300 は、たったの 17 ワットの熱設計電力 (TDP) で最大 2.4GHz で動作する4 つのコアを持つ Intel Atom® プロセッサー C3558R (開発コード名: Denverton-NS Refresh) を搭載しています。旧世代の Intel Atom® プロセッサー 3558 と比較して、Intel Atom® プロセッサー 3558R は同程度の TDP を維持しながらより高い周波数に到達し、DDR4-2133 の代わりに DDR4-2400 のような高速メモリーに対応します。さらに、12 本ではなく 20 本の PCI Express 3.0 レーンがあるため、より優れた接続性と帯域幅を実現します。 企業ファイアウォールの外で運用する際、ネットワークのエッジでデータを収集してクラウドに送信するには不正アクセスから情報を保護するための暗号化が必要となるため、Intel Atom ® C3000 シリーズがインテル ® Quick Assist Technology (QAT) に対応していることは、多くの業界にとって重要な点です。CASwell MEC-6300 などの QAT 対応デバイスは、QAT 非対応のデバイスに比べて暗号化と復号を 10 倍以上高速に処理できます。 接続性の面では、MEC-6300 はさまざまなネットワーク接続オプションを提供します。最大 10 ギガビットのイーサネット・ポートが 6 つあり、Wi-Fi (5GHz と 2.4GHz) および LTE と 5G によるモバイル・ネットワーク通信を利用できます。ワイヤレス接続を支えるのは、5G (sub6) 用の 4 つの外付けアンテナと LTE および WiFi 用の 18 の内部アンテナです。 MEC-6300 の内部には、拡張可能な M.2 スロットが 1 つ備わっており、5G、LTE、SATA、ストレージ、WiFi、DSL、Bluetooth や ZigBee のほか、AI 向けにも利用できます。ここには、ニューラル・ネットワークといった人工知能の手法を使って小売店での顔認識やガソリンスタンドでのナンバープレート検査を実現するインテル ® Movidius™ Myriad™ X ビジョン・プロセシング・ユニット (VPU) を搭載可能で、電力効率とコンピュート性能のバランスが優れたエッジシステムを高速化させます。 インテル® Movidius™ Myriad™ X VPU は、ディープ・ニューラル・ネットワーク推論向けの専用ハードウェア・アクセラレーターである Neural Compute Engine を搭載しています。インテル ® OpenVINO ツールキットを利用してプログラム可能であり、AI または基盤にある推論エンジンを活用できるエッジ機能に最適なソリューションを提供します。 OpenNESS に対応していることも、MEC-6300 が優れた選択肢である理由の 1 つです。このオープンソース・ソフトウェア・ツールキットは、エッジ・コンピューティング・アーキテクチャーから着想されたもので、容易なオーケストレーション、ネットワーク機能やアクセス技術を実現します。OpenNESS は、Kubernetes や OpenStack などの主要な産業エッジ・オーケストレーション・フレームワークを活用し、5G、LTE、Wi-Fi、有線ネットワークで動作するアーキテクチャーを提供します。CASwell MEC-6300 のような、マルチアクセス、マルチワイヤレス・エッジ・システムには最適です。 総合的に見て、CASwell MEC-6300 には高い汎用性と柔軟性、多くの異なる接続性オプション、比較的小型なフォームファクターに効果的、効率的な処理能力が備わっているため、異なる業界で見られる数多くのユースケースに最適なエッジ・ネットワーク・システムです。考えられる用途には、ヘルスケア、小売、輸送、製造またはスマートシティーまたは家庭内利用などが挙げられます。 CASwell MEC-6300 には、屋内用のバージョンと、屋外導入や広い使用温度範囲用のバージョンの 2 種があります。質問がありましたら、地域の CASwell 代表者または販売部にお問い合わせください。
