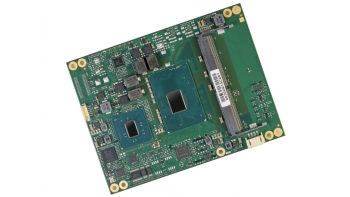

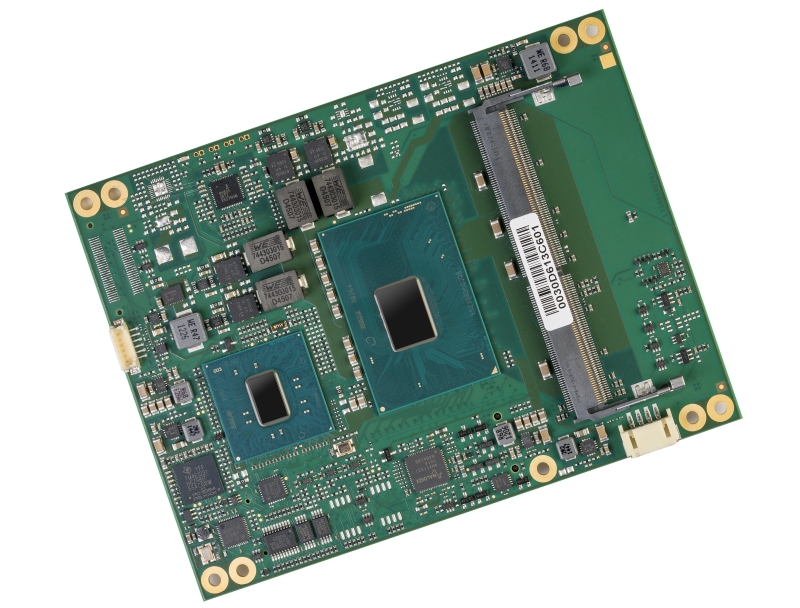

The MSC C6B-KLH module is based on Intel‘s 7th generation Core processor family. The Intel two-chip solution allows highest performance in graphics and computing on a COM Express module in basic form factor. The new MSC C6B-KLH offers triple independent display support with up to 4k x 2k resolution, highest level graphics acceleration and hardware based video en-/decoding. Fast DDR4 memory with optional error correction (ECC) and multiple USB 3.0/2.0 interfaces complete the compact and powerful module. Different dual- and quad-core processors are supported by this design. Besides an extensive set of interfaces and features, the MSC C6B-KLH optionally offers hardware based security compliant to the requirements of TCG (Trusted Computing Group). The Type 6 pin-out allows direct access to the latest digital display interfaces like DisplayPort 1.3, HDMI 1.4b and DVI as well as up to four USB 3.0 interfaces supporting the fastest peripherals currently available. System investments are well protected through long-term availability of the module, designed and manufactured by Avnet Embedded. In addition, the COM Express standard enables performance scaling and migrating applications to future technology upgrades when they become available.
