ION 64b/66b High Speed Serial Interface IP
このオファーについて

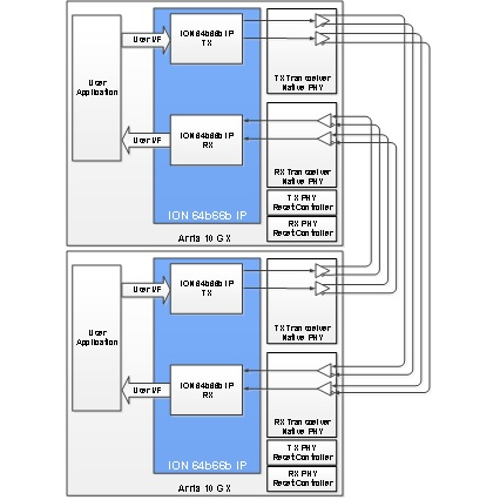

ION 64b66b is an IP for high-speed serial interface targeting applications with inter-chip and inter-board connections.Lightweight link layer protocol provides one-to-one data movement via one or more high-speed serial lanes.Features13.5-Gbps maximum transmission rate per lane (however, depends on the FPGA used)Supports up to 16 lanesSupports CRC functionSupports Scrambler functionSupports asymmetrical linkSupported DevicesArria® 10 GX* Please contact Macnica sales department for information about other devices.DeliverablesEncrypted RTL (Verilog HDL)Reference designSimulation environment (For ModelSim)User's manual, Reference manualDownloads64b/66b High-speed Serial Interface IP (ION 64b66b) PDF
詳細
地域の対象範囲
アメリカ大陸:
北米
中南米
ユースケース
ハイパフォーマンス・コンピューティング
業種
その他
技術仕様
- カテゴリー:
- ソフトウェアと IP コア: FPGA 知的財産コア: インターフェイス・プロトコル: シリアル
- エンドカスタマーのタイプ:
-
中小企业
其它
インテルのテクノロジーを含む
